WT-9635

• Interface:Utilizes a PCI Express x1 slot and is also compatible with x2, x4, x8, or x16 sockets. Comes with an 8 cm low-profile bracket, making it suitable for installation in small HTPC cases.
• Operating Systems:Works with Windows 10/8/8.1/7/XP/Vista, Windows Server 2012/2008 R2/2008/2003, UEFI, and Linux kernels up to 5.6.
Network Performance:
• Standards: Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3az, and 802.3bz.
• Data Rate: Offers data rates of 10/100/1000Mbps and 2.5Gbps for high-speed networking.
• Jumbo Frame: Supports jumbo frames up to 9KB, enhancing network performance.

Get quotes

Send your requirements, we will quote for you within 24

Model	WT-9635

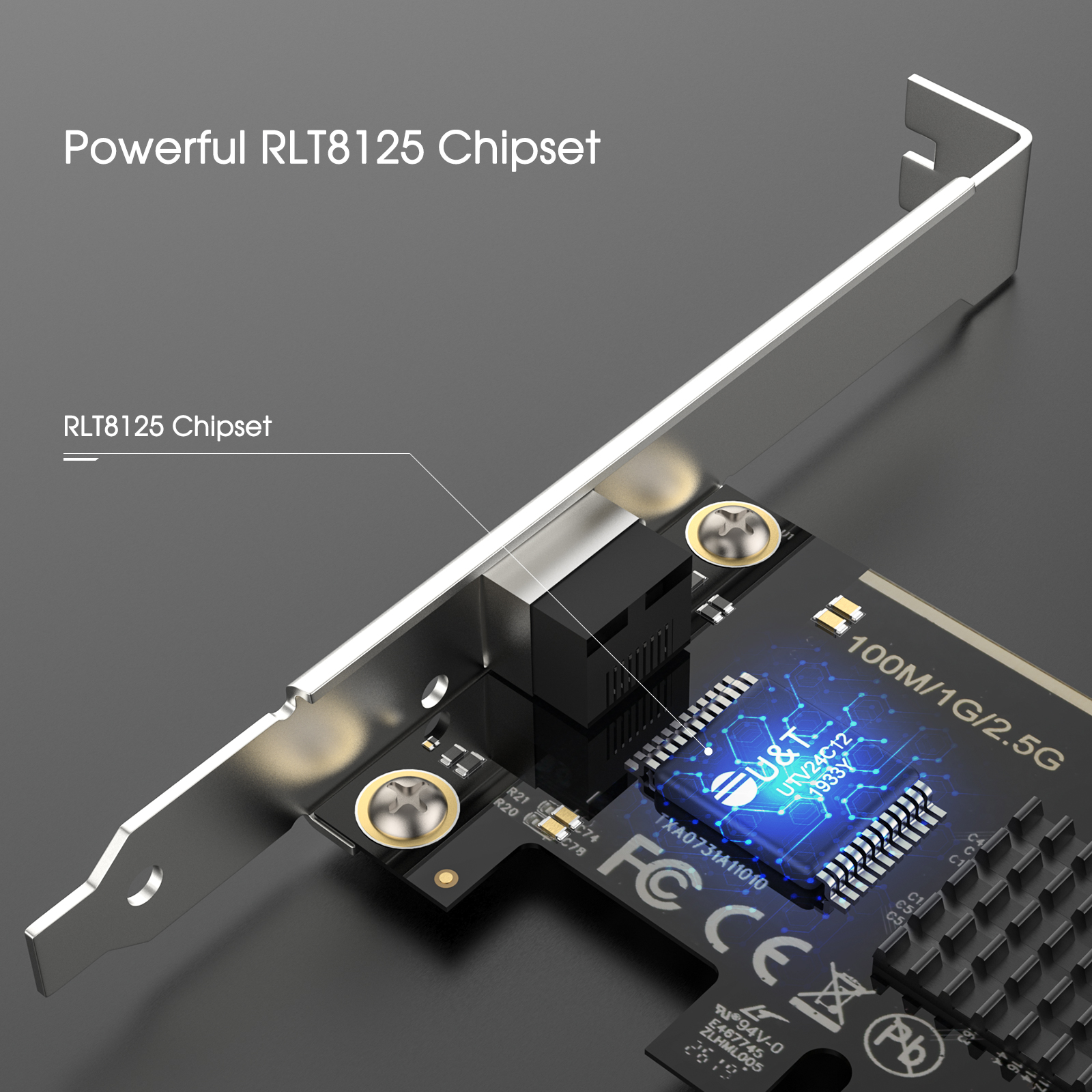

Chipset	RTL8125
Interface	PCI Express x1 slot, also compatible with x2, x4, x8 or x16 sockets
Port	1 x RJ45
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
Network Media	10Base-T, Cat 3 or above UTP, 1000Base-TX, Cat 5 or above UTP
Data Rate	10/100/1000Mbps and 2.5Gbps
Auto MDIX	Yes
Full Duplex Support	Yes
MTBF	376,212 hours
LED Indicators	Link/act, speed

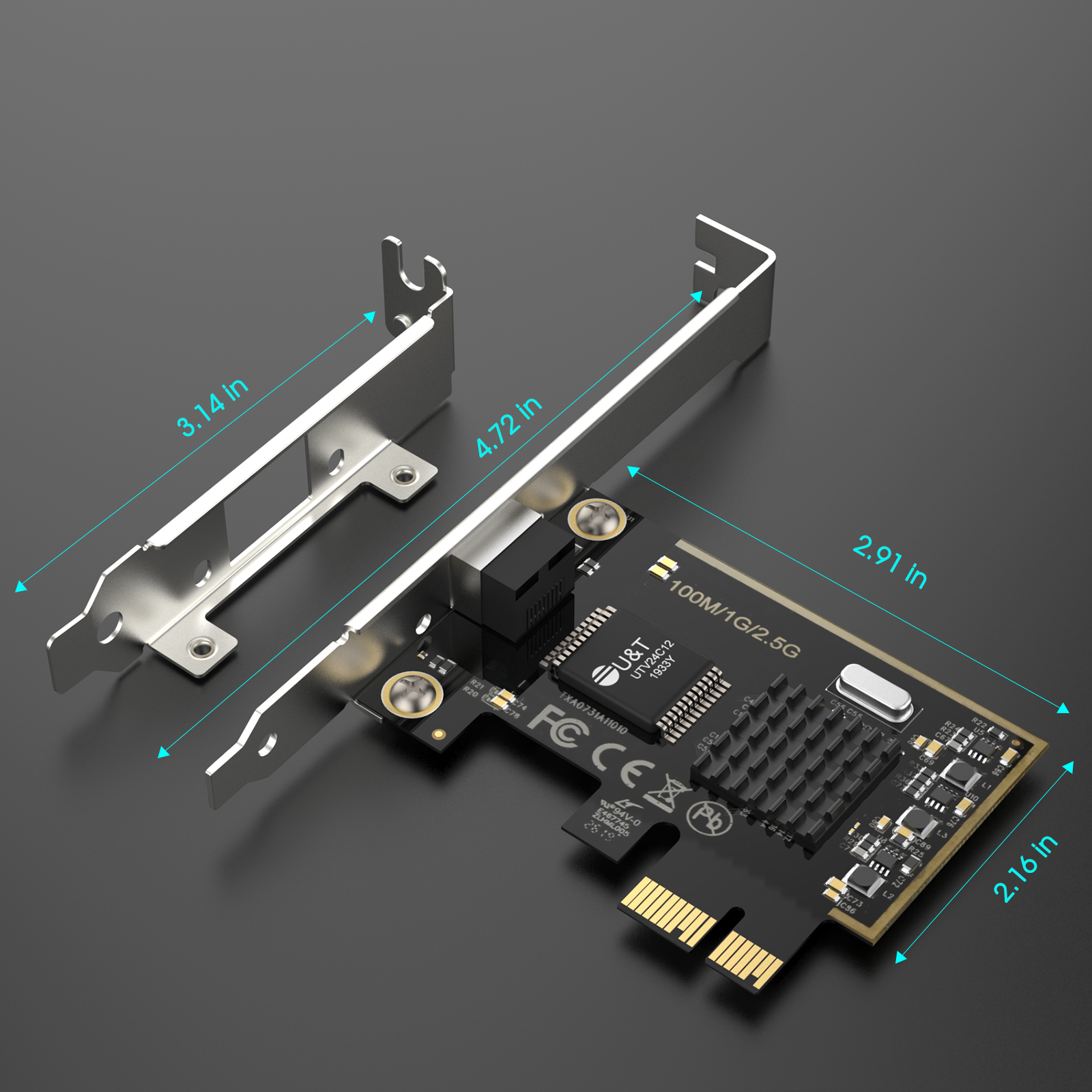

Dimensions	71.5 * 50 * 1.6 mm
Operating Temperature	0°C to 60°C; Storage Temperature: -10°C to 70°C
Operating Humidity	10% to 90%RH (non condensing); Storage Humidity: 5% to 90%RH (non condensing)
Compatible Operating Systems	Windows 10/8/8.1/7/XP/Vista, Windows Server 2012/2008 R2/2008/2003, UEFI, Linux kernel up to 5.6
